User guide

Overview

PR0L1NE is a split-screen tool for seeing your code's data while you write it. Python, JavaScript or TypeScript goes in the editor. Next to it, a graph-paper canvas draws every variable, list, dict, object, function and scope as SVG. When your code is inside a loop, the loop history animates its current pass in place, so you can press Play to watch values slide into place step by step. Or switch to stacked mode, and each iteration is stacked under the last one with red arrows showing exactly what changed.

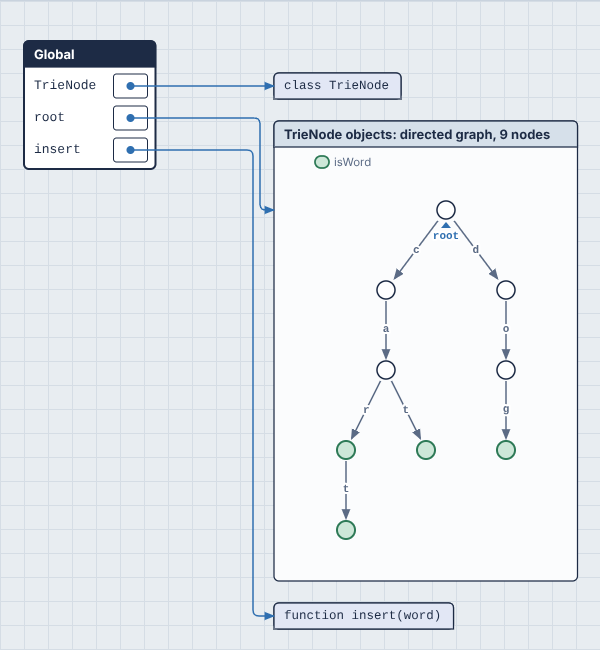

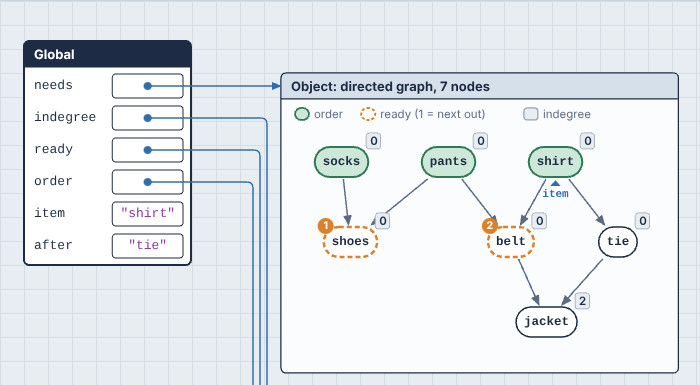

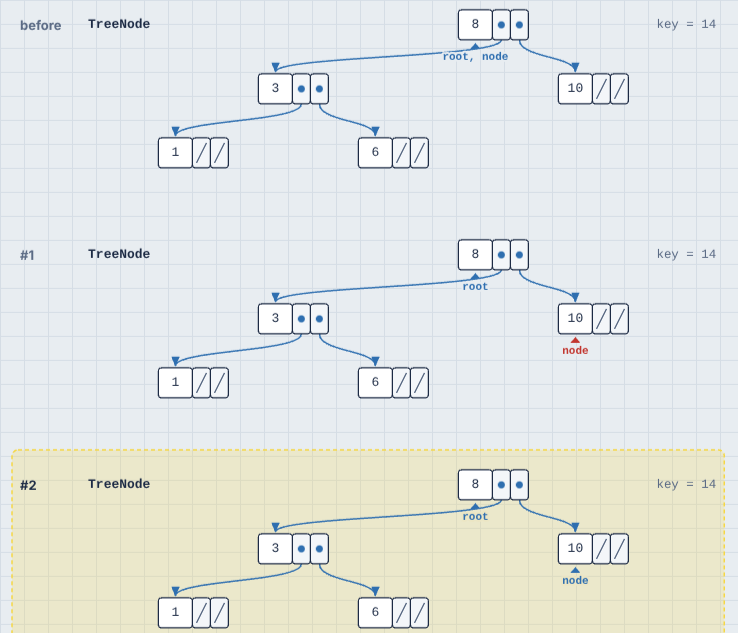

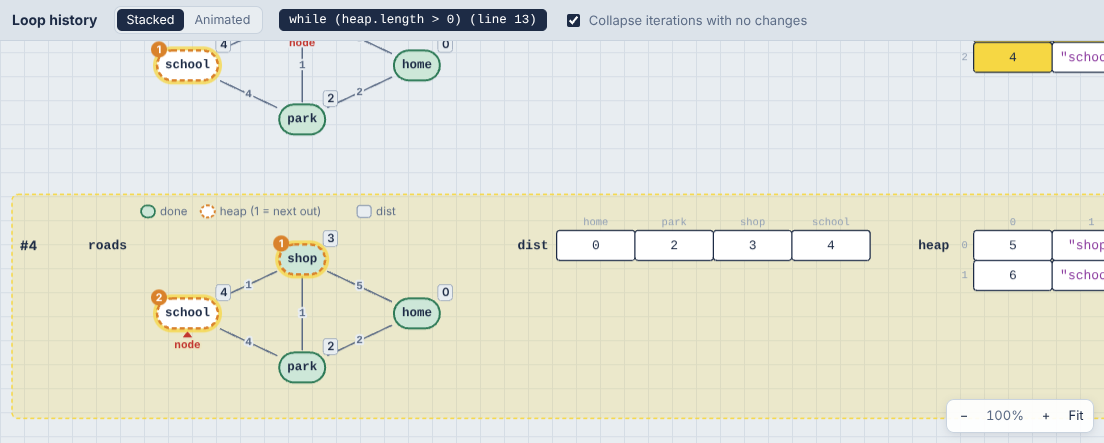

Binary trees are drawn top-down. Graphs (adjacency lists, matrices, tries, graphs of objects) are drawn as nodes and edges, with your algorithm's own state on them: the visited set filled in, the queue numbered, distances labeled, the search tree in green. Generators and async functions get their own frames that pause and resume, and # viz: / // viz: comments let you tell the canvas how to draw things when its automatic choices aren't what you want.

Big inputs still trace: long loops are sampled (their first passes, passes at round numbers and their last passes are recorded, and the rest are counted), and a long list of numbers is drawn as a color strip of all of it, with the cells following your index variables. For the full picture, Measure runs the whole program at full size with counters instead of a trace: how many times every line ran, the work hidden inside built-ins, time and memory. Mark the input size with a hint (# viz: size n) and Measure reruns the program at n/64, n/16, n/4 and n to chart how it grows, against the code's estimate and against other versions you kept.

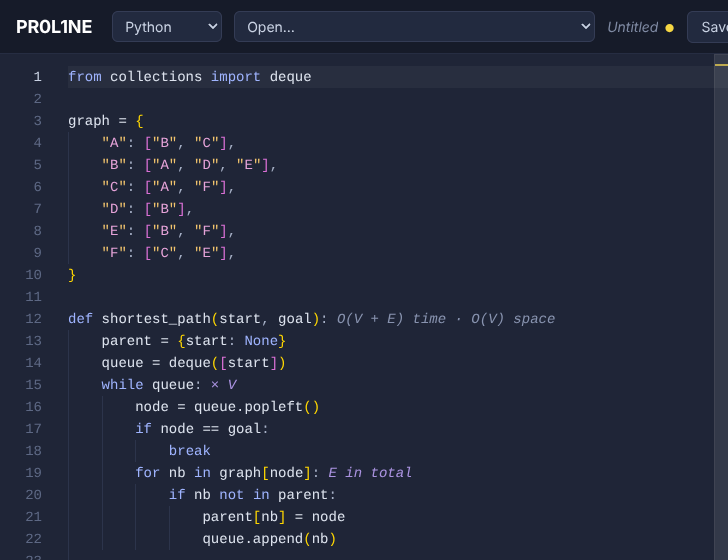

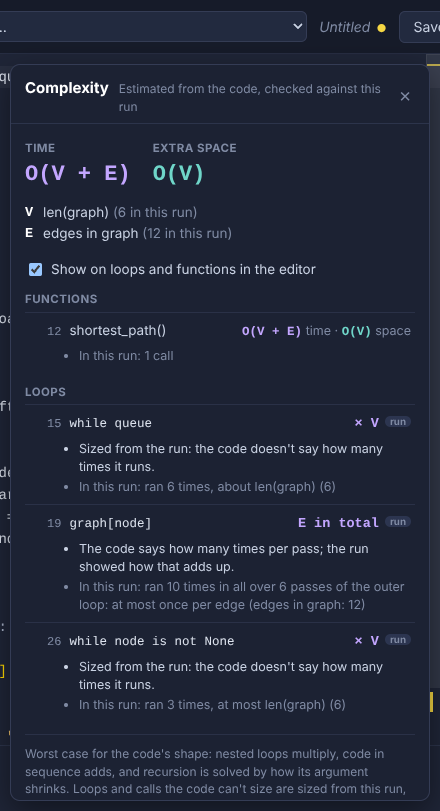

It also estimates your code's time and space complexity (O(n²), O(n log n), O(V + E)) from the shape of the code, checks the estimate against the run, and labels every loop and function in the editor with what it costs.

It runs entirely in your browser, so there's no server to set up. Python executes in a real CPython interpreter compiled to WebAssembly (Pyodide). JavaScript runs in the browser's own engine, after PR0L1NE rewrites it to report on itself as it runs. TypeScript has its types removed and then runs the same way.

Choosing a language

The menu at the left of the toolbar switches between Python, JavaScript and TypeScript. Each language keeps its own code, undo history, saved programs and examples, so switching back and forth doesn't lose anything. A first visit opens in JavaScript, and after that the page remembers the language you used last. Python's runtime (about 6 MB) is only downloaded the first time you pick Python; the status in the toolbar reads "Downloading Python (6 MB)…" until it's ready, and your browser keeps a copy after that.

The visuals are the same for every language, but JavaScript's semantics show through in a few places (all of these apply to TypeScript too):

• Block scoping is visible. A let or const declared inside a loop or block only appears while that block is running. In the bubble sort, the inner loop's j shows up in the inner loop's history but not in the outer loop's, because it doesn't exist there.

• Variables appear when they're declared. A let or const isn't shown until its declaration has run, since reading it earlier is an error in JavaScript. A var appears from the start of its function as undefined, because that's how hoisting works.

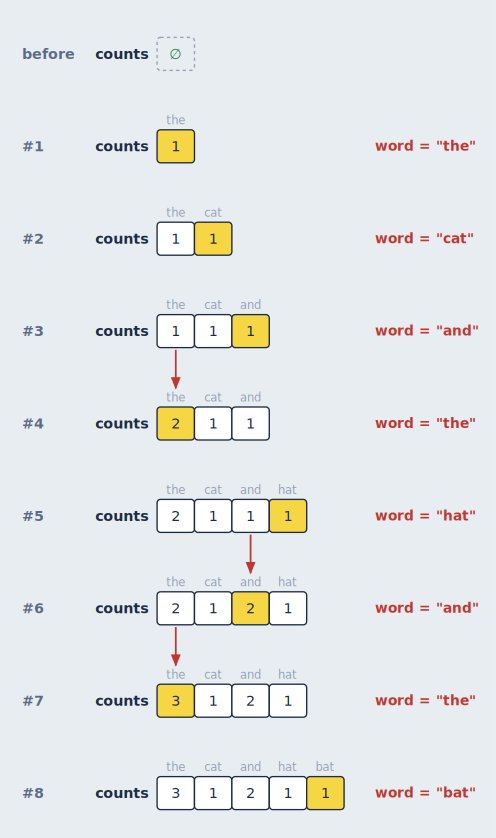

• Plain objects are drawn as dictionaries. {} is JavaScript's everyday map, so counts[word]++ gets the same growing-dictionary loop view as a Python dict, with keys shown unquoted. A Map is drawn the same way. Instances of your own classes are drawn as objects with fields.



• Methods show this. Inside a class method or object method, this appears as a variable on every step, the way Python shows self. Arrow functions inside a method show it too, since they share the method's this.

• Function names come from where they're defined. const double = (x) => x * 2 appears as double() on the call stack, and class methods appear as ClassName.method().

TypeScript

TypeScript is traced as the JavaScript it compiles to, so everything in the previous section applies, and types themselves never appear on the canvas. That's not a shortcut: types don't exist while a program runs, so there's nothing to draw. A few things are worth knowing:

• Types aren't checked. PR0L1NE removes types without checking them, the way esbuild, Vite and tsc --noCheck do. Code with type errors still runs, and you'll see what it actually does. Syntax errors are still reported.
• Your line numbers are exact. Removing an interface or type doesn't shift anything, so the highlighted line is always the one you wrote.
• Enums are real objects. An enum compiles to an object, so it appears in the heap. Numeric enums map both ways (Light.Red is 0 and Light[0] is "Red"), which you'll see as both kinds of key.
• Parameter properties work as expected. constructor(public val: T, public next: ListNode<T> | null = null) {} sets the fields without producing extra steps for the generated this.val = val.
• Compiler-generated code is hidden. The helper functions behind enums and namespaces run without being traced, so they don't clutter the call stack. That also means code inside a namespace block runs untraced, though its exports work normally.

Saving programs

Press Save or Ctrl/Cmd + S to keep the program you're working on. The first time, you're asked for a name. After that, Ctrl/Cmd + S saves over it, the way it does in VS Code. Ctrl/Cmd + Shift + S always asks for a name, so you can save a copy under a new one.

The program's name sits in the toolbar next to the Open… menu. A yellow dot after it means there are unsaved changes, and the dot disappears when you save. A program that hasn't been saved yet is shown as Untitled.

Open… lists your saved programs for the current language, most recently saved first, followed by the examples. If the program you're leaving has unsaved changes, you're asked before they're discarded. Delete appears while a saved program is open. Deleting it keeps the code in the editor as an untitled program, so nothing disappears from the screen until you open something else.

Saved programs are stored in your browser (in localStorage), separately for each language. They survive reloads and restarts, but they belong to this browser on this machine, and clearing the site's data removes them. Separately from saving, PR0L1NE always keeps whatever is in the editor, saved or not, so a reload never loses work in progress.

Sharing a program

Share in the toolbar copies a link to the code in the editor. Whoever opens it sees that program, in its language, ready to run. The program travels inside the link itself (the part after #), so it's never sent to or stored on any server: the link works as long as PR0L1NE does, and anyone who has it can open the code.

Opening a link shows the program as a Shared program with a note that it's someone else's code. Nothing runs until you press Run it (or Run), so you can read it first, and when it runs, it runs in the sandbox like any program. Save to my programs keeps it. Your own work is left alone: your saved programs, and the unsaved code you had in that language, are as they were until you edit the shared program. Once you do, it's your unsaved code, as if you'd typed it, and the link leaves the address bar.

Programs up to about 30 KB once packed fit in a link (every example takes under 1.5 KB). A link can't be changed or deleted after it's shared: change the code and share again for a new link. If the browser can't copy to the clipboard, the link is shown in the banner to copy by hand.

Examples

The Open… menu has 37 to 39 examples per language, grouped by topic. Each one is short enough to step through, and each shows off a different part of the canvas:

Group	Examples
Sorting	Bubble sort, insertion sort, merge sort (recursion; generic in TypeScript)

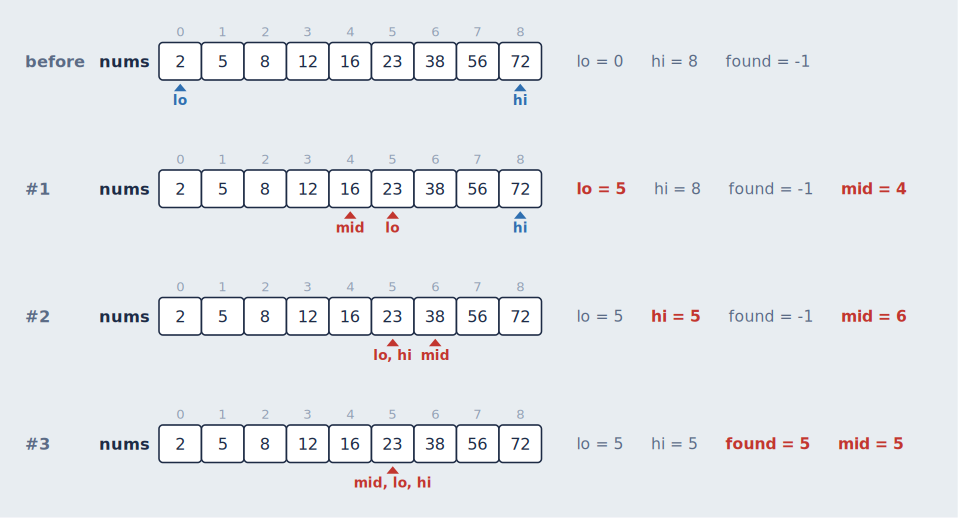

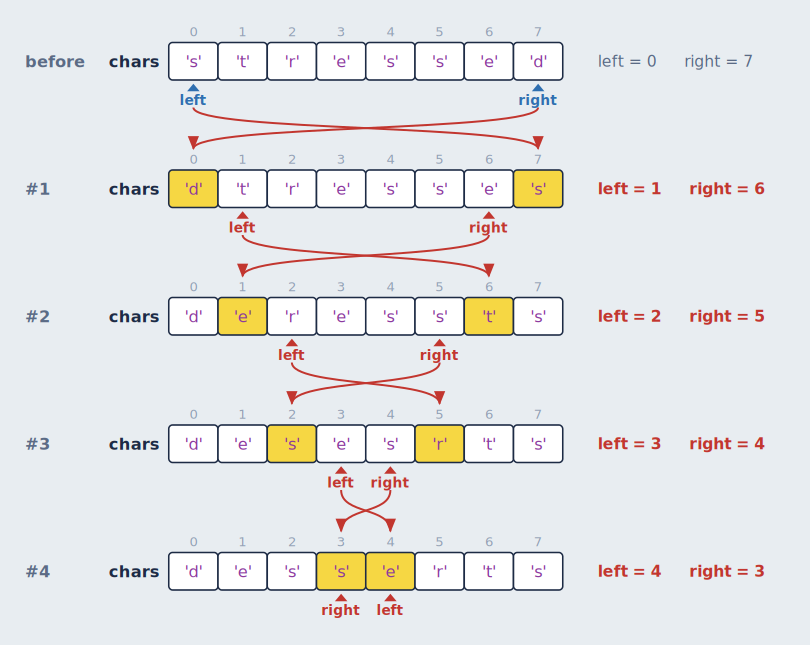

Searching and two pointers	Binary search, reversing a string with two pointers, two sum with a hash map, a sliding window, word frequency

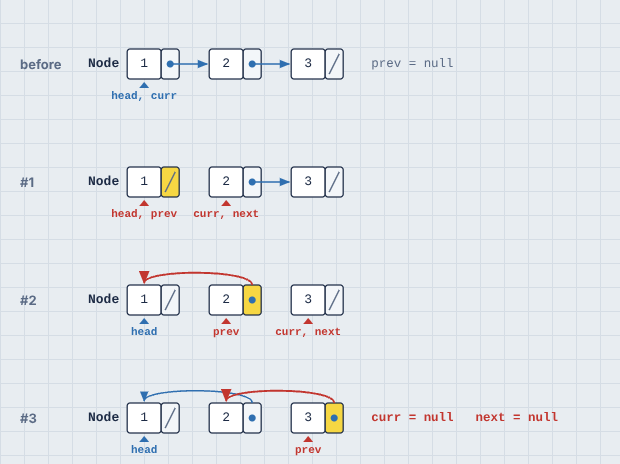

Linked lists and trees	Reversing a linked list, finding a cycle with fast and slow pointers, binary search tree insert, in-order traversal, a trie
Graphs	Breadth-first search with the shortest path, recursive depth-first search, Dijkstra's algorithm, topological sort, a graph of objects

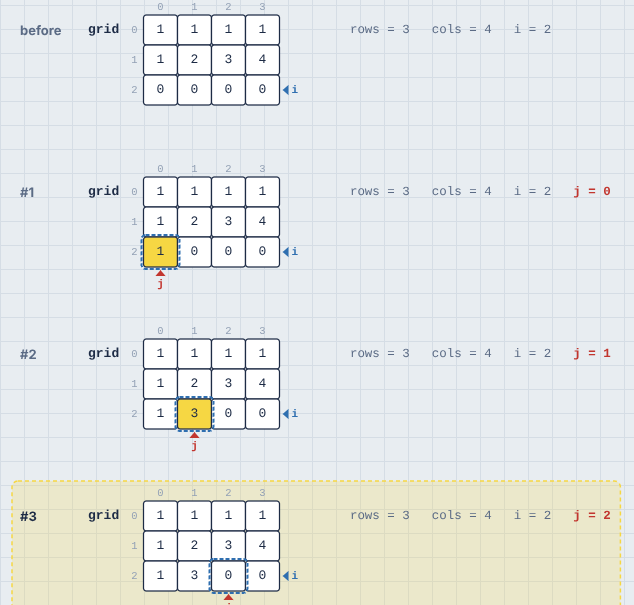

Grids and dynamic programming	Grid paths, longest common subsequence, coin change, flood fill (number of islands), Fibonacci with a memo (Python and JavaScript)
Functions, classes and generators / async	Recursion, closures, a class with methods, generators; async tasks (asyncio in Python; with timers in JavaScript and TypeScript); array callbacks in JavaScript and TypeScript; a generic class and an enum in TypeScript
Hints, step by step	Ten examples that teach hints, from a single hide to every kind of hint at once

The same topics exist in every language, written the way that language would write them: a deque and heapq in Python, a Map and Set in JavaScript, typed Records and generics in TypeScript.

The editor

The editor on the left is Monaco, the editor component VS Code is built on, so VS Code's editing and navigation keys work as you'd expect: multi-cursor (Ctrl/Cmd + D, Alt + Click), move and copy lines (Alt + ↑/↓, Shift + Alt + ↑/↓), toggle comments (Ctrl/Cmd + /), go to line (Ctrl + G), find and replace, bracket jumping, folding, and the command palette (F1).

With Live checked, the program re-runs 600 ms after you stop typing. Otherwise, press Run or Ctrl + '. Your code is saved in the browser, so it survives a reload. The Open… menu has your saved programs and starter examples that each exercise a different part of the canvas. Opening a program or an example is a normal edit, so Ctrl/Cmd + Z brings the previous code back.

PR0L1NE adds a few commands of its own, borrowing VS Code's debugger keys for stepping:

Keys	Command
Ctrl + '	Run. Works anywhere on the page, not just in the editor, and is Ctrl on a Mac too
Ctrl/Cmd + Enter	Play from the current step. Pressed again while playing, it stops and goes back to the step it started from. Works anywhere on the page
Ctrl/Cmd + S	Save (asks for a name the first time)
Ctrl/Cmd + Shift + S	Save as a new program
F10	Next step
Shift + F10	Previous step
F1, then type "AlgoViz"	All of PR0L1NE's commands (their palette names still start with "AlgoViz:"), including first and last step, play/pause, and swapping the panels

Hint comments that PR0L1NE can't understand get a yellow warning squiggle; hover it to see what was expected (see Hints).

While you step through a run, the editor marks lines with a tint and a bar in the gutter (and a matching mark in the scrollbar):

• Yellow: the line that just ran. This is the line whose effects the canvas is showing.
• Blue: the line that runs next.

If the same line ran and runs next (a loop around a single statement), it's yellow. The editor scrolls to keep the yellow line in view while you step, unless you're typing.

• Red: where an error happened (shown once you reach the last step). The error is also a real diagnostic with a squiggle, so hovering shows the message and F8 jumps to it.

If you're mid-edit and the code has a syntax error, the canvas keeps showing the last version that ran (dimmed), a banner explains what's wrong, and the line is marked in the editor.

Layout

The ⇄ button at the right end of the toolbar swaps the editor and canvas, so the canvas can be on the left if you prefer. It's also in the command palette as "AlgoViz: Swap Editor and Canvas". Your choice is remembered.

Drag the divider between the panels to resize them, or focus it with Tab and use the arrow keys. Double-click it to go back to the default size. The editor keeps its width when you swap sides, and the width is remembered too.

Inside the canvas, Memory and Loop history are separate sections with a divider of their own. It works the same way: drag it, use ↑/↓ when it's focused, or double-click to reset. Its position is remembered.

On a phone

A phone screen can't fit the editor, the memory view and the loop history at once, so a bar under the toolbar picks which show: Code, Memory and Loops. Up to two show at a time, one above the other (side by side when the phone is on its side):

• Tap a window that's hidden to show it. If two were already showing, the one you picked longest ago makes room.
• Tap one of two that are showing to hide it, and the other fills the screen.

It starts with the code and the memory view, and remembers what you pick. On a phone the toolbar's buttons are one row that scrolls sideways, with Run first; the window headers scroll sideways the same way. The Style, Complexity and Measure panels open over the whole screen, so they work whichever windows are showing. Both windows start with Auto-fit on, so the whole diagram fits.

This layout is used on any screen narrower than 820 pixels, or shorter than 500 (a phone on its side); a tablet held upright gets it too.

Styling the canvas

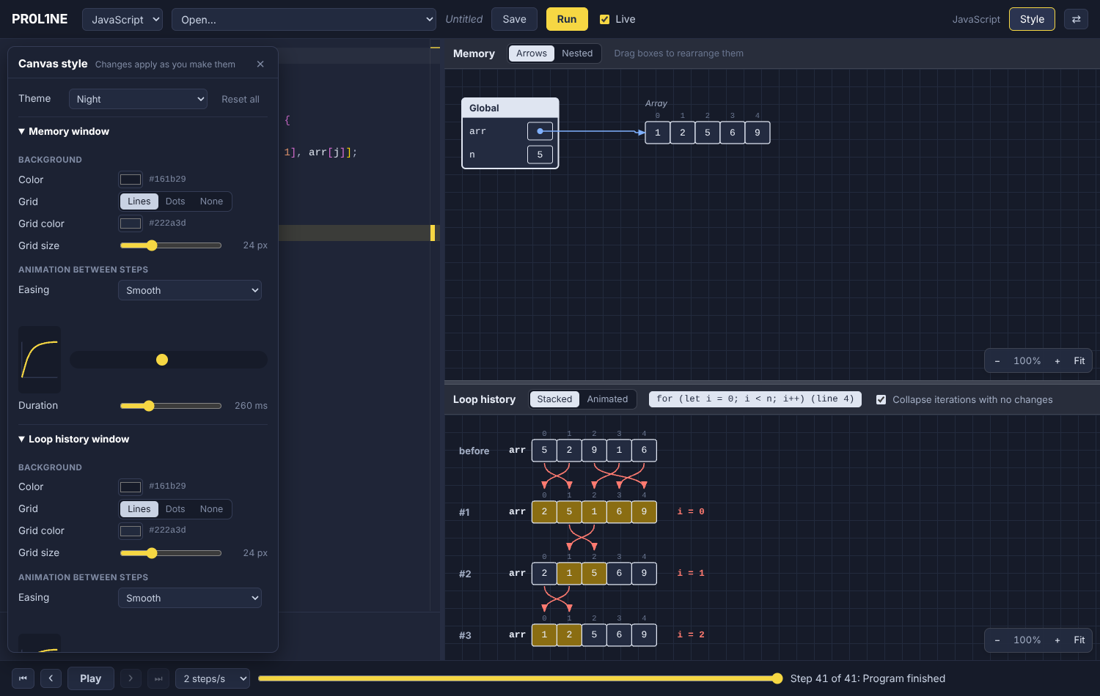

Style in the toolbar opens a panel for how the canvas looks. Every change shows up on the canvas as you make it, and is remembered in this browser. The panel floats over the editor, whichever side the editor is on, so the canvas stays fully in view and keeps working while it's open. Close it with ×, Esc, or the Style button.

Section	What you can change
Rendering	Whether the windows are drawn with SVG (the default) or Canvas 2D. See SVG or Canvas 2D below.
Theme	A starting point: Graph paper (the default), Whiteboard (white, no grid), Dot grid, Blueprint (white lines on blue), Night (dark) and High contrast. Changing anything after that makes it Custom. Reset all goes back to Graph paper.
Memory window and Loop history window, separately	The background color. The grid: lines, dots or none, its color and its size (it still scales with zoom). The easing of the animation between steps: Smooth, Linear, Ease in and out, Ease out, Ease in, Overshoot, Snap, or any cubic-bezier(...) you type. Its duration, from 0 (no animation) to 1000 ms. And how new things arrive: Fade in (on by default) and Slide in (from the left, with the window's easing; off by default), together, one or the other, or neither so they just appear. Same as the memory window copies all of it to the loop history.
Colors	Every color in the diagrams: lines and text, cell and box fills, box titles, function and class titles, numbers, strings and constants, the yellow "changed" highlighter, the red change arrows, the blue references and pointers, memory sizes, the printed-output card and its text, the graph colors (visited, waiting, search tree, path), and the text drawn straight on the background (names, labels, index numbers).
Printed output	How the printed-output card arrives: Fade in and Slide in (turn both off and it just appears), Fade the dimming (with Dim others on, the rest fades down and back up rather than switching at once), and the duration, 0 to 1000 ms.
Lines and text	Arrow thickness (0.5× to 3×), box outlines, cell corners (square to round), the code font used in the diagrams, and whether changed cells flash when they turn yellow.

Previewing animation. Next to the easing menu, a curve shows its shape. Click the track beside it and a dot slides across once, with your easing and duration (it stays still until you click). ▶ Replay this step at the bottom redraws the previous step and animates into the current one, so you can watch the real thing. Bubble sort is a good example to try it on, since its swaps slide.

The window headers (the strips with "Memory" and the Arrows | Nested switch) take their colors from each window's background, so a dark theme is dark all the way up.

SVG or Canvas 2D

The Rendering section at the top of the Style panel picks how the two windows are drawn. Both draw exactly the same picture, from the same layout, in the same colors, with the same animations, dragging, hover highlights, Auto-fit and zooming. What differs is how the picture reaches the screen.

	SVG (the default)	Canvas 2D
How	Every box, arrow and value is an element of the page	Drawn with PixiJS on one canvas the size of the window, only what's in view
Stepping	Quicker: each step changes only the elements that changed	A little slower: the canvas is painted whole each step
Panning and zooming big drawings	Can stutter: the browser redraws thousands of elements as you zoom	Smooth, however big the drawing gets
Zoomed in	Always sharp	Lines are always sharp; text is redrawn sharp a moment after you stop zooming
Screen readers	Can read the values in the diagram	Can't read the diagram itself, only the window names
Save SVG	Yes	Yes, the same file

Pick SVG for most programs, or if you use a screen reader. Pick Canvas 2D if you're exploring a big drawing (hundreds of boxes, a long loop history) and panning or zooming around it stutters. Your choice is remembered. The canvas renderer downloads the first time you pick it (about 100 KB). If it can't start in your browser, the Style panel says so and the windows stay on SVG.

A few small differences on the canvas: a box doesn't get a soft shadow while you hover over it, and a box being dimmed (by Dim others) fades each of its parts rather than the box as a whole, which can show a hint of the box's outline through its cells.

Saving a picture

Save SVG, in each window's toolbar next to Auto-fit, saves what the window is showing as an SVG file: a vector picture that stays sharp at any size. It works with either renderer, and opens in a browser or a drawing app (Inkscape, Figma, Illustrator...) where you can edit it further. The file is named after the program, the window and the step (bubble-sort-memory-step-12.svg).

The file carries its own colors, line widths and fonts, so it looks the same outside PR0L1NE, with the window's background color behind it and no grid. Text uses the diagram font from the Style panel; if the computer that opens the file doesn't have that font, it falls back to another monospace font.

Moving around the canvas

Each canvas section is its own sheet of graph paper that you can move around independently:

To	Do this
Pan	Drag an empty part of the paper, or scroll (two fingers on a trackpad, Shift + scroll to go sideways)
Zoom	Ctrl/Cmd + scroll, pinch on a trackpad or touch screen, or the − / + buttons
Reset the view	Click the zoom percentage, or press 0 with the section focused
See everything	Fit shrinks the diagram until it all fits (it never enlarges)
Keep everything in view	Auto-fit refits on every step (see below)

With a section focused (click it or Tab to it), + and − zoom too. The arrow keys still step through the program.

Zooming centers on the pointer, so you can zoom into the part you're looking at. Each section keeps its own position and zoom as you step and as your code re-runs. While you step through a loop, the loop history pans just enough to keep the running iteration in view.

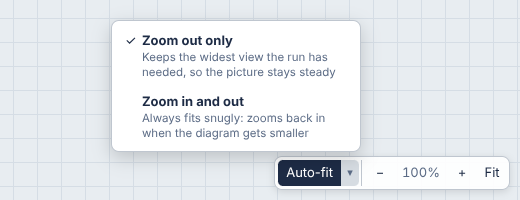

Auto-fit

Auto-fit, next to the zoom buttons, keeps the whole diagram in view on every step. When a step needs a different zoom (a new object appears, a tree grows a level, the loop history gains a row), the canvas glides there with the same easing and duration as that window's step animation in the Style panel. The memory view and the loop history each have their own Auto-fit. It's on to begin with, and turning it off (or changing its mode) is remembered.

The ▾ next to it picks how it zooms:

• Zoom out only (the default) keeps the widest view the run has needed. Stepping back to a small early step, or a diagram that shrinks, doesn't zoom back in, so the picture stays steady while you step back and forth.
• Zoom in and out always fits snugly. It zooms back in when the diagram gets smaller.

Like Fit, it never zooms in past 100%. Zooming or panning by hand turns Auto-fit off, so it never fights you, and pressing Auto-fit turns it back on with a fresh, snug fit. Opening another program also starts fresh.

Rearranging the memory view

Drag any box in the memory view, whether a frame or a heap object, to put it somewhere else. Arrows follow it.

A box stays where you put it as you step through the program, and through live re-runs as you edit, so you can arrange a linked list or a tree the way you think about it and then step through the algorithm. Boxes you've placed are drawn on top of the automatically placed ones, and the boxes you haven't touched keep their usual places. If a new object appears where you've put a box, it's placed below your box instead of being hidden under it. Dropping a box onto another one moves the other one out of the way.

Reset layout (next to the zoom controls, shown once you've moved something) puts every box back. Opening a different program or switching language also starts from a fresh layout.

How a box is recognized from one step, or one run, to the next:

• Frames by their position on the call stack and function name, so "the third factorial() call" keeps its place.
• Objects by their id. Ids are numbered in the order objects are first seen (o1, o2, ...), in every language, so the same program gives the same ids every run. If an edit changes the order objects are created in, a moved position can end up on a different object. Reset layout fixes that.

The timeline

The bar at the bottom moves through the recorded steps. Use the buttons, drag the slider, or use the keyboard: F10 / Shift + F10 work everywhere, and ← / → / Home / End work when the editor doesn't have focus (inside the editor those keys move the cursor). The step description next to the slider has a fixed width, so the slider never changes size as you drag it; hover the description to see all of it when it's cut off.

The timeline starts at step 3. Every run begins with "called Global" and "next is line 1", which both show an empty program, so they're skipped: the first step shown is the state after line 1 ran. First step, Home and replaying from the end all go there.

A step is one of:

• Ran line N, next is line M: the state after line N ran, just before line M runs. It matches the editor, where N is yellow and M is blue. The first step of a function just says Next is line M.
• Called f(): a new function call started, so a new frame appears.
• f() returns X: the function is about to return; its frame shows a returns row.
• f() yields X and pauses: a generator handed a value back; its frame shows a yields row and then pauses.
• f() waits at line N and pauses: an async function reached an await.
• f() resumes at line N: a paused generator or async function picks up where it left off.
• Error raised on line N: an exception is propagating.

When you edit code while sitting on the last step, the view stays on the last step of the new run, so you always see the end result of what you just typed.

Playing a program

Play steps forward on its own at the speed chosen next to it (½, 1, 2, 4, 8 or 16 steps per second; your choice is remembered). Space plays and pauses when the editor doesn't have focus, and "AlgoViz: Play / Pause" is in the command palette for when it does. Playback stops at the last step, and pressing Play there starts again from the first step. Ctrl/Cmd + Enter plays from the step you're on, from anywhere, including the editor. Press it again while it's playing to stop and jump back to the step it started from, so you can watch the same stretch again. Any other way of moving (the buttons, the slider, the keys), editing the code, or running it pauses playback.

Moving one step at a time, whether playing or pressing F10, is animated: boxes and pointer markers slide to their new places, values that moved within a list slide from their old cell to their new one (so a swap is two values crossing), and new boxes, markers and list cells fade in (or slide in, or both, or neither: set per window in the Style panel). Arrows don't animate: each one is simply drawn in its new place, so they never flicker. Jumps (dragging the slider, Home/End) aren't animated, since there's nothing meaningful to tween across many steps. Each animation lasts 260 ms with a smooth ease-out by default (both can be changed per window in the Style panel), or less at high speeds so it always finishes before the next step. If your system asks for reduced motion, nothing animates.

The memory view

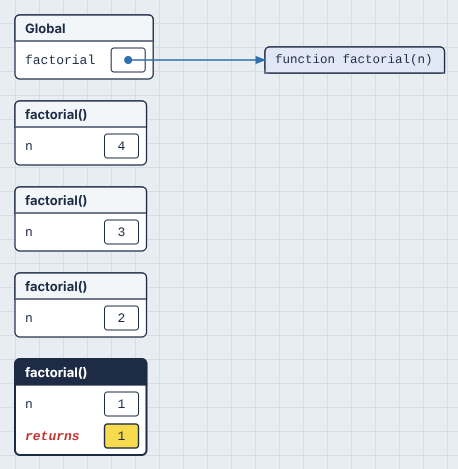

• Frames (scopes) are stacked on the left: Global, then one box per active function call. The frame that's currently executing has a dark title bar.
• Primitives (numbers, strings, booleans, None) are drawn inside the variable's cell.
• Everything else lives in the heap to the right and is connected by a blue arrow. Lists and tuples are rows of cells with indices above. Dicts, objects and functions are tables. Functions show the variables they've captured from an enclosing scope (closures).
• Heap objects are arranged in columns by distance from the stack. Things your variables point at directly sit in the first column, things those point at sit in the second, and so on. That's why a linked list or tree reads left to right.
• Boxes never overlap. A new box is placed below anything already in its spot, including boxes you've dragged there.
• Yellow means "changed since the previous step." A dashed blue outline means "this object was just created."
• Index pointers: small markers under a list show where variables like i, j, lo and hi point. See pointer detection for how these are chosen.

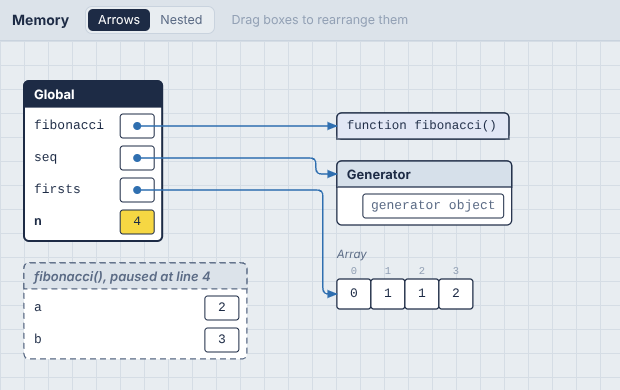

• Paused generators and async functions are drawn under the call stack as frames with a dashed outline, titled with where they paused. See Generators and async functions.

Printed output

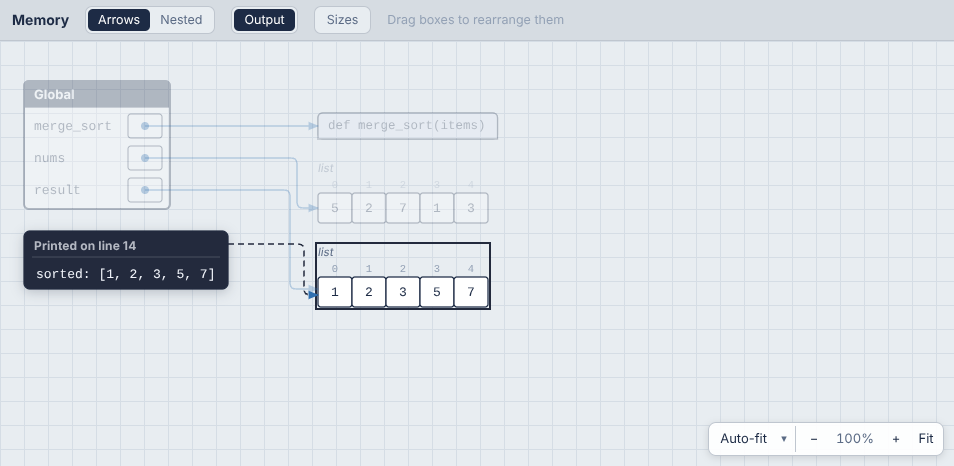

On the step right after a print() or console.log() runs, what it printed appears on the canvas as a dark console card under the call stack, titled with the line that printed it. Turn on Dim others (next to Output in the memory window's header) and everything else steps back too (it dims to about a quarter), so the output stands out. That's most useful exactly where the console pane is easiest to miss: a print on the last line, or a log from an async function or timer callback that runs after the script's top level is done.

If what's printed is an object on the canvas (print(nums), console.log(node)), it's outlined, with a dashed arrow from the card to it, and with Dim others on it stays bright too. So you can tell which of two similar lists was the one printed. A temporary that's printed and then thrown away (print([1, 2])) shows in the card's text only, since it isn't on the canvas.

The card is as wide as the call stack's column, which widens for a program that prints (to fit its longest printed line, up to about 45 characters, the same on every step). Longer lines wrap at spaces and commas, and output longer than a dozen lines ends with "… N more lines". The card can be dragged like any box. Output turns the card off, which helps when a loop prints on every pass. Dim others is off by default; both are remembered. Its colors are under Colors in the Style panel, and how it animates in (fade, slide, duration) under Printed output.

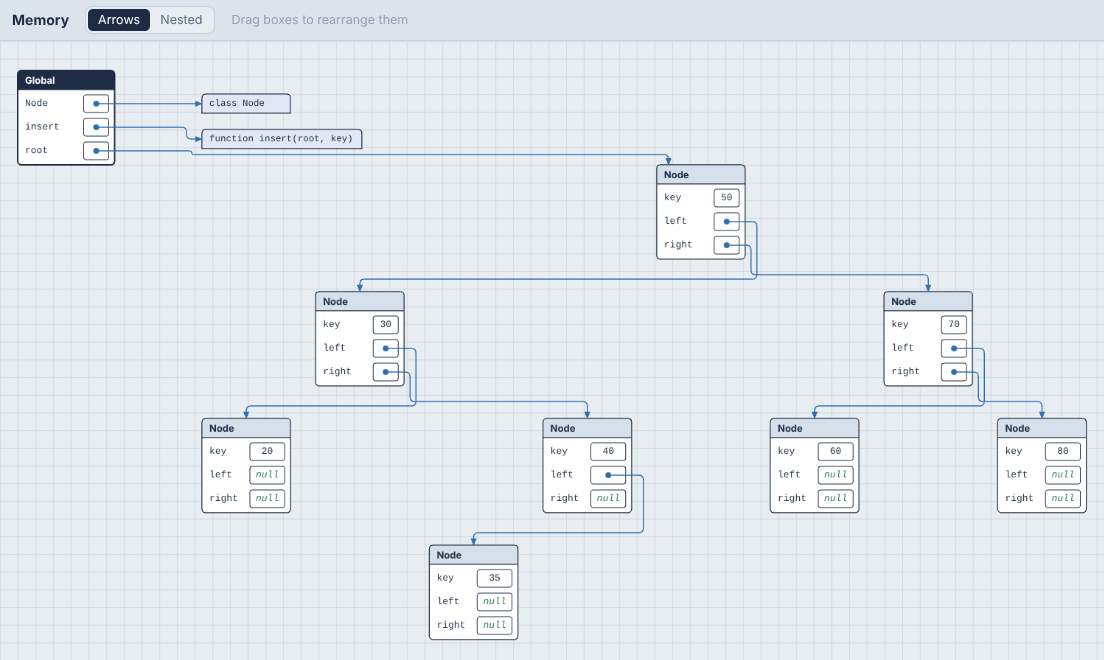

Trees

A binary tree is drawn top-down, like in a textbook: each node sits at the height of its depth and in its in-order position, so a binary search tree reads sorted from left to right. Arrows leave a node's left and right cells, drop into the gap below it, and enter each child from the top.

A tree is recognized the same way as in the loop history: objects of one class with exactly two links to the same class, where no node has two incoming links. A tree with parent pointers has three links, so add a viz: tree hint to draw it as a tree. Trees are laid out like this in Arrows mode. Nested mode draws them as boxes in boxes. A single node isn't treated as a tree, and a node you drag leaves the tree layout and stays where you put it.

Following the arrows

Arrows are drawn as straight runs with rounded corners, and they travel through the empty gaps between columns, so they don't cut across boxes:

• An arrow to a box on the right runs along its row, turns once in the gap, and enters the box's left side. If the box is level with it, it's a single straight line.

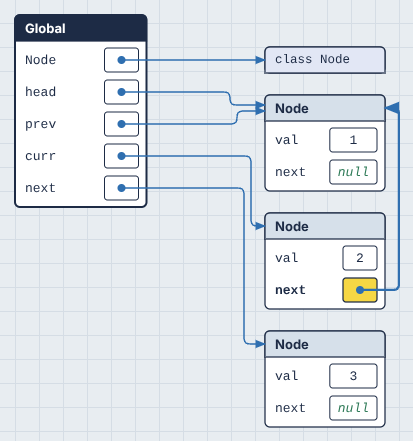

• An arrow to a box in the same column (a linked list being reversed, a node pointing at itself) loops out to the right and comes back into the box's right side.
• An arrow back to an earlier column goes over the top of the boxes in between, or underneath if there's no room above.
• Arrows from list cells leave downward and turn at staggered heights, like the teeth of a comb, so arrows from neighboring cells never run along each other. The leftmost cell turns highest.
• Arrows sharing a gap each get their own lane, ordered to keep crossings down, and arrows arriving at the same box get separate arrowheads.

Hover over a box to see what it's connected to. Its arrows, in and out, are highlighted, the boxes at their other ends get a dashed outline, and every other arrow is dimmed. The highlight follows the box while you drag it, and stays as you step through the program with F10.

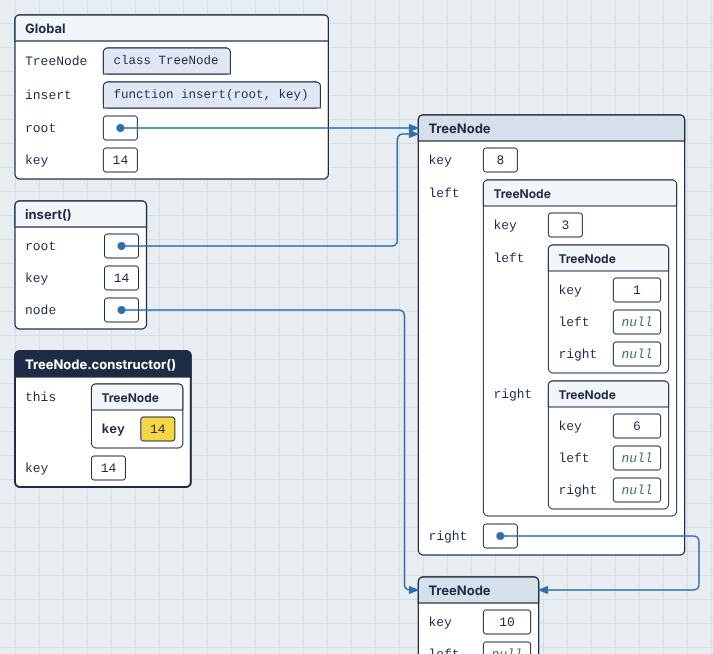

Arrows or nested boxes

The Arrows | Nested switch in the Memory header changes how references are drawn. Your choice is remembered, and F1 → "AlgoViz: Toggle Nested Memory View" switches it too.

• Arrows draws every object as its own box, with an arrow for every reference.
• Nested (the default) draws an object inside the thing that refers to it, as long as nothing else refers to it. A list in a variable sits right in the variable's row, and an object's fields hold their sub-objects. A list of lists becomes a grid: rows stacked, column numbers along the top, row numbers down the side. If your code indexes it as grid[i][j], i is marked beside its row, j under its column, and the cell the step works on gets a dashed outline. That cell comes from the code itself: the grid[a][b] on the line that just ran (or, if that line doesn't touch the grid, the one about to run), with a and b worked out from the variables at that step. In a spiral traversal, results.append(matrix[up][col]) outlines matrix[up][col], even with down, left, right and row all pointing somewhere too; on lines that don't index the grid, nothing is outlined. Names like left, right, lo and hi that the code only uses for columns are drawn only under columns, and the same for rows.

Nesting can only show "this belongs to that", so anything with more than one reference stays a separate box connected by arrows. That covers objects two variables share (aliasing), nodes that curr points at while they're also in a list, and cycles. In the tree above, node 10 stays separate because both root.right and the variable node point at it. That's often exactly what you want to notice: in nested mode, an arrow means "shared".

Nesting stops 6 levels deep. A deeper chain continues in a new box joined by an arrow, and nesting starts again inside it, so a long linked list becomes a few readable boxes rather than a tower.

Boxes still drag the same way in nested mode. Nested objects move with the box they're in.

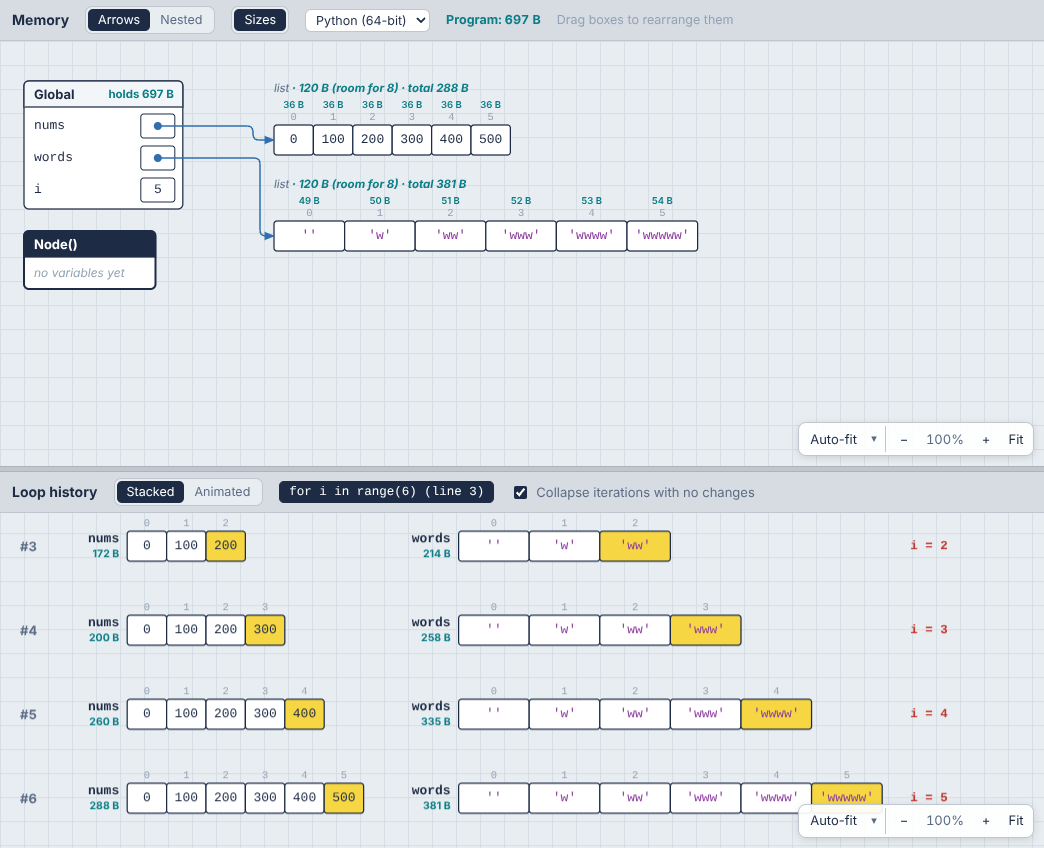

Memory sizes

Sizes in the memory window's header shows how much memory everything takes, the way the index row shows positions. It's for building intuition: why a list of 1,000 ints is bigger than 1,000 × 8 bytes in Python, how much room a list keeps for growth, what a hash map costs per entry compared to an array.

Sizes are drawn in their own color (teal by default; Memory sizes under Colors in the Style panel), so they never read as values:

• The label line of each list, dict, set or object gets the object's own size and its total: list · 120 B (room for 8) · total 288 B. A box with a title (dicts, objects, graphs) shows it at the right of the title bar.
• Each cell of a list, tuple or array gets its size, in a row above the index numbers, so you can see a Python int take 36 B (the 8-byte pointer plus the 28-byte int it points at).
• Each frame says how much its variables hold (holds 697 B).
• The header shows the whole program's total, everything reachable from every frame: Program: 697 B.
• The loop history shows the total of each container, linked structure or graph on every row, so you can watch it grow iteration by iteration. A Python list that's appended to jumps in steps (172 B → 200 B → 260 B …) as it reallocates.

Own and total. An object's own size is the object itself: its header and its slots. Its total adds everything it holds, all the way down. Anything reachable twice (two references to one node, a shared list) is counted once, so totals never double-count.

Room for N (Python lists only) is the list's capacity: how many items fit before it has to grow. Python over-allocates so append is cheap on average, and this is where you see it.

The menu next to the switch picks how sizes are counted. Each language remembers its own choice:

Model	For	How it counts
Python (64-bit)	Python (default)	What CPython really uses on a 64-bit machine, from sys.getsizeof. Every value is an object: an int is 28 bytes, a float 24, an ASCII string 41 + its length, and a list slot is an 8-byte pointer to the object.
Textbook	Python and JavaScript (default)	The model algorithm courses use: an 8-byte slot per element, numbers stored in the slot, one byte per character, 16 bytes (key and value) per hash map entry, 8 bytes per object field. An array of n numbers is 8n bytes. Language-neutral and easy to do in your head. Functions and classes aren't sized.
Estimated (V8)	JavaScript	An estimate of what V8 (Chrome, Node) uses on 64-bit with pointer compression: 4-byte slots, small integers stored in the slot, other numbers as 12-byte heap numbers, 12-byte object headers, Map and Set as hash tables. JavaScript can't measure objects, so these are marked ≈.

Python sizes in the browser. Pyodide is 32-bit WebAssembly, where pointers are 4 bytes, so sys.getsizeof there gives smaller numbers than your laptop would. The tracer converts every size to what 64-bit CPython reports, using rules measured on both (pointer-based objects double, ints gain 12 bytes, ASCII strings 20, dicts are worked out from their hash table). Lists, tuples, sets, dicts, strings and big ints come out exactly; instances and classes within a few percent.

Turning sizes on costs almost nothing: they're computed once per step and cached, and stepping is no slower in practice (about 3 ms a step either way).

Big inputs

A trace records the program step by step, which is what lets you scrub back and forth. It keeps up to 20,000 steps, and stops after 6 seconds when you press Run (1.5 seconds for Live runs while you type, so the page keeps up). Rotating an array of 40,000 items right 10,000 times would be 20,000 steps or more for every rotation, so a big input would stop almost at once if every step were kept. Three things let it get further:

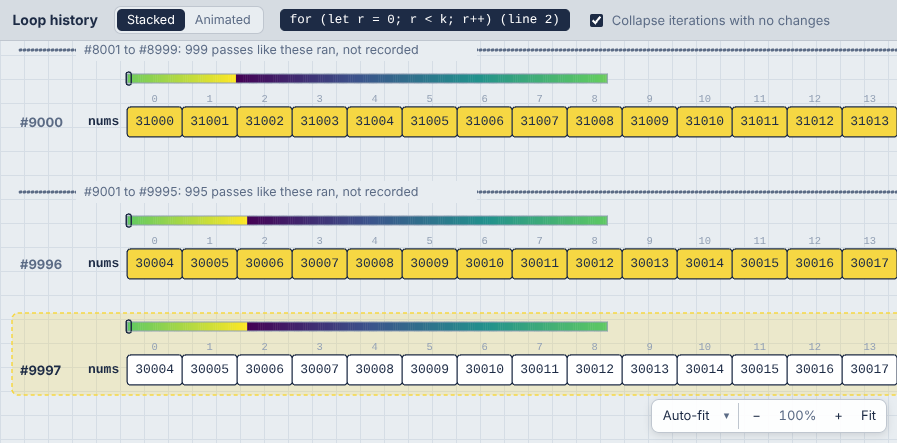

Long loops are sampled. A loop whose passes would use more than its share of the steps keeps its first 5 passes, passes at round numbers (10, 20 … 90, 100, 200 … 1,000, 2,000 …, as many as its share allows) and its last 5 passes. The passes in between still run, and are counted, but aren't recorded. The loop history shows where they were: "#6 to #9: 4 passes like these ran, not recorded". The step label says when steps were skipped just before the one you're on ("1.99K steps skipped"). A loop of unknown length (a while) has its passes buffered as it goes, so its last 5 are kept wherever it ends. A function called again and again from one line (a callback given to map, Array.from, sorted(key=...)) is sampled the same way, and so is a comprehension.

Long lists are drawn as a strip. A list or array of more than 60 numbers gets a band of color above its cells: 256 evenly spaced samples of the whole list, darkest for the smallest value and yellow for the largest. A bracket shows where the cells below are, and small triangles show the index variables. The 60 cells follow those index variables (j sweeping down a 40,000-item list shows items near j, with their real indices), moving 10 at a time so they don't jump on every step. In the loop history, a rotation's gradient slides along each row.

Steps share what didn't change. Each step stores only the objects that changed since the step before; unchanged ones are the same object in memory. That makes traces 3 to 15 times smaller, which is what makes 20,000 steps practical.

When a trace still stops early, the banner says why (the time or the step budget), how many steps ran in all, and offers Measure.

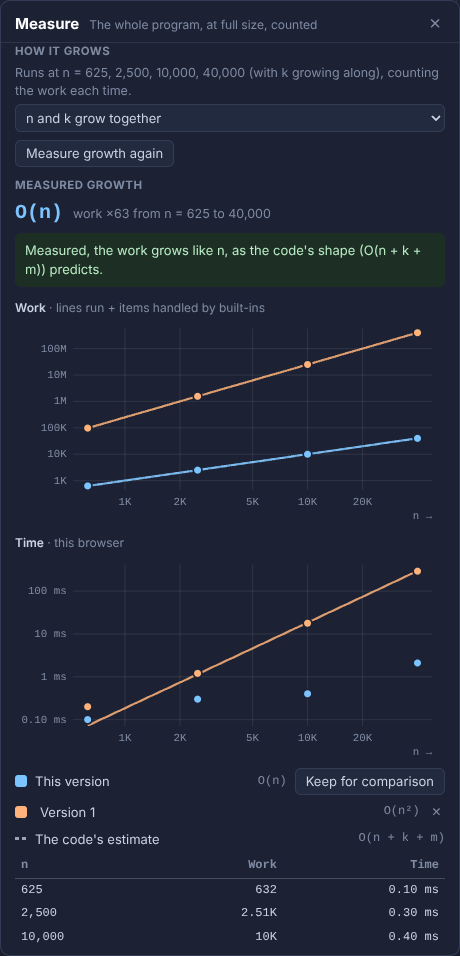

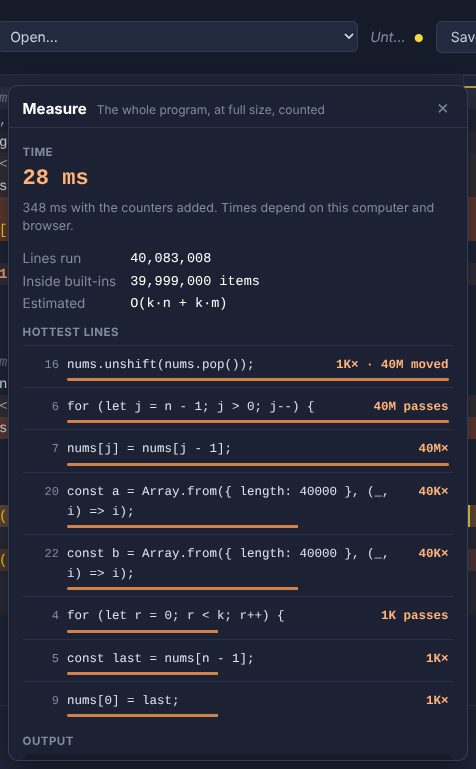

Measuring at full size

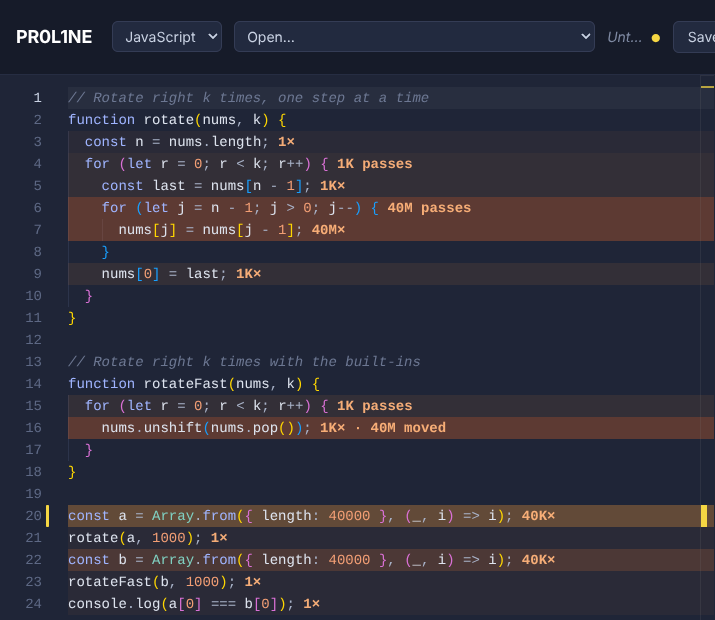

Sampling shows what a big run does; it doesn't run it all. Rotating an array of 40,000 items right 10,000 times, one place at a time, is 400 million steps. Measure (next to Run, or Ctrl + Shift + ') runs the whole program at full size with counters instead of a trace, and shows where the time goes:

• On every line in the editor: how many times it ran (40M×), or for a loop, how many passes its body made (1K passes). Lines are tinted by how hot they were.
• Work hidden inside built-ins. nums.unshift(nums.pop()) is one line that ran 1,000 times, but each time it moved all 40,000 items: 1K× · 40M moved. The same goes for list.insert(0, x) and list.pop(0) in Python, shift() and splice(), x in some_list and indexOf ("scanned"), slices and concat ("copied"), and sorting. Same Big-O as the hand-written loop, but done in C, which is why it's so much faster: the kind of thing this is for.
• The panel opens with the results: the time; the totals (lines run, items processed inside built-ins, memory, and the complexity estimate from the small run beside them); the hottest lines (click one to go to it); and the output.

Times. The counters slow a program down, typically 2 to 4 times. So if the counted run was quick (under 5 seconds), the program runs once more untouched, and that's the time shown, with the counted time beside it. Times are this computer's and this browser's; Python runs as WebAssembly here, a few times slower than Python on a desktop. Counts are exact either way, so compare counts, not milliseconds, across machines.

The time limit (5 seconds, 20 seconds, 1 minute or 5 minutes, in the panel; 20 seconds by default) stops a run that takes too long. Progress shows in the status bar meanwhile ("Measuring… 4.1 s · 23% of line 3's loop"), and Measure becomes Stop. A run stopped at the limit still shows its counts so far, how far its outermost loop got ("31 passes of 10,000 through the loop on line 3"), and, from that, about how long the whole run would take.

Memory (Python): what the program's variables hold at the end, with the same 64-bit sizes as the Sizes view, and, for programs quick enough to run a third time with every allocation tracked, the peak. Slicing a 40,000-item list peaks higher than rotating it in place, even though both end up holding the same list. Browsers don't let a page measure a JavaScript program's memory, so JavaScript shows none.

Measure only runs when you ask (never on every edit), and editing the code takes its counts off the lines, since they'd no longer line up. Live runs wait until a measurement finishes.

How it grows

One measurement is one number. How that number grows with the input is what separates an O(n) solution from an O(n²) one, so Measure can also run a program at several sizes.

Mark the input size with a hint naming the variable that sets it: # viz: size n (or // viz: size n in JavaScript), for a program with n = 40000 at its top level. Name several to grow them together: viz: size n, k. Give a value to scale up to a bigger size than the one you trace: with n = 200 in the code (quick to step through) and viz: size n = 40000, growth runs go up to 40,000. Without a hint, the How it grows section of the Measure panel offers to add one for the biggest number assigned at the top level.

Measure growth (in the panel, or "Measure Growth" in the command palette) then runs the program at n/64, n/16, n/4 and n, one after the other, each with the panel's time limit. With two or more size variables, a menu picks which grow: all together, or one alone.

• The measured growth, fitted to 1, log n, n, n log n, n², n² log n or n³ from the counts (lines run plus items handled inside built-ins), on log scales, where every power of n is a straight line and steeper is worse. Counts are exact, so the fit is too; the time chart is there for the feel of it, and very quick runs can be too fast for the browser's clock to time.
• The code's estimate, dashed, through the largest size. When the two disagree, the panel says so and what might cause it: work below the estimate usually means a loop that stops early, a check that skips work, or a size reduced first (like k % n); work above it usually means a built-in that walks the data.
• Keep for comparison puts the results on the charts as "Version 1" (click the name to rename it). Change the code, measure its growth again, and both versions are drawn together: the naive rotation's O(n²) beside the slicing version's O(n). Up to 5 versions are kept per language, in this browser.

If a size stops at the time limit or with an error, the ladder stops there, and the panel estimates how long the full size would take from the sizes that finished.

Time and space complexity

The Time · Space button in the toolbar shows how the program's running time and extra memory grow with its input, like Time O(n²) · Space O(1) for bubble sort, or Time O(V + E) · Space O(V) for breadth-first search. The editor labels each loop with how many times it runs, and each function with what it costs:

• × n after a loop: it runs n times each time it's reached. Nested loops multiply.
• E in total: an inner loop that adds up to a total over the whole outer loop instead of multiplying it, like a BFS visiting each edge once, or a sliding window whose left edge only moves forward.
• O(n log n) time · O(n) space after a function definition.

Hover a label for the reasoning. Click the button for the whole explanation:

• The sizes. What n, m, V and E stand for in this program (n = len(nums), V = len(graph), E = edges in graph), with their values in this run. Sizes come from your own variable names: a loop over range(len(nums)) is n, nested loops over a grid's rows and columns are n·m, a dict of neighbor lists gives V and E, and a linked structure of objects is counted in nodes.
• Each function: its time and space, and how they were worked out (calls itself twice on half of n, with n work per call: n log n in all; remembers its answers (a memo), so it does the work once per value of n), with the run's own counts (25 calls in all, 6 deep at most).
• Each loop: its label, whether it was sized from the code or from the run, and what the run did (ran up to 5 times per run, expected about 5). Click any row to jump to that line.
• Worth knowing: costly operations hiding inside loops, like queue.shift() in JavaScript (it moves every item, so a BFS that uses it is O(V²) rather than O(V + E)), x in some_list in Python, or copying a slice.

How it's worked out. First from the code's shape: nested loops multiply, code in sequence adds, range(n) is n, a loop that halves its range (mid = (lo + hi) // 2) is log n, and built-ins have their known costs (sorted is n log n, in on a list is n, on a set is 1). Recursion is solved by its pattern: one call on n - 1 is n deep; two calls on halves with linear work is n log n; two calls on n - 1 is 2ⁿ, unless the function keeps a memo.

Then it's checked against the run, which fixes what reading the code alone gets wrong:

• A loop the code doesn't bound (while queue:) is sized by how many times it ran, matched to the program's inputs: ran 6 times, about len(graph) (6). These loops get a small run badge in the panel.
• An inner loop that ran about as many times in total as its outer loop is amortized: it adds rather than multiplies. That's how a sliding window comes out O(n) and a BFS O(V + E), not O(n²) and O(V·E).
• Recursion the code can't classify, like a flood fill or a DFS guarded by a visited set, is sized by how many calls the run made. Exponential recursion that made far fewer calls than 2ⁿ is pruned by something (a check, a cache), and is counted that way.
• Collections your code builds (a queue, a seen set, a result list) are sized by how big they got, in terms of the inputs.

Space is the extra memory beyond the input: collections the code creates and fills, copies (slices, sorted(), [...arr]), and the call stack's depth for recursion. The inputs themselves aren't counted.

It's the worst case for the code's shape, not the average case. An early break or a lucky input doesn't make a loop count for less. Turn the editor labels off with the checkbox in the panel (it's remembered).

Loop history

When the current step is inside a loop, the bottom section stacks the state at the end of every iteration so far, starting with a before row for the state when the loop was entered. Between rows:

• Yellow cells changed during that iteration.
• Red arrows connect each changed cell to its previous row. When a value moved from one index to another (a swap), the arrow starts at the index it came from, so swaps show as crossing arrows.
• Variables to the right (i = 2, left = 3) are the scalars that change during the loop. The ones that changed in that iteration are red.
• The current iteration is highlighted while the loop is still running.

Each run's header, with its values. Above a loop's rows, its header is shown as written and as it ran: for j in range(n - 1 - i) → for j in range(0, 3), or in JavaScript for (let j = 0; j < n - 1 - i; j++) → for (j = 0; j < 3; j++). That's for loops that count (a Python range, or a JavaScript for with a start, a bound and a step), so you can see which range this run covers without working it out. Loops over a list, and while loops, show only their rows.

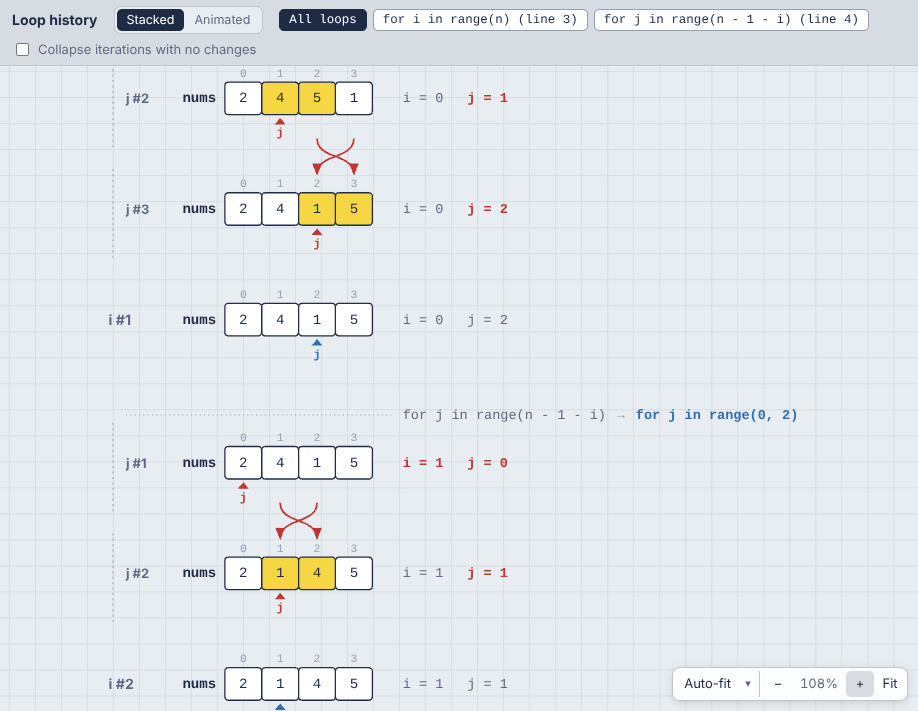

All loops together

When loops are nested in the same function, All loops (the first tab, and the default) draws them in one history, in the order things happened: every pass of the inner loop, indented under a header with that run's range (for j in range(0, 3), then range(0, 2)...), then the row for the outer pass it was part of, its state once the inner loop is done. Labels name the loop's variable (j #2, i #1), and arrows and highlights compare each row with the row above it, across loops. Collapsed rows and sampled passes are per loop: j #4 to #9: nothing changed.

The other tabs show one loop at a time, as before: pick one to see only its passes. Loops in different functions (a loop inside a function called from a loop) are always separate tabs. Animated mode shows one loop, since it draws a single live row.

One above another

When a loop works on several things at once (a list and a linked list, two arrays, a grid and a queue, a graph and the list it fills), they're drawn side by side in each row. Tick One above another in the Loop history header to draw each on its own line instead, left-aligned with their names in one column, and the iteration (#4) and its variables (i = 2 j = 0) at the middle of the stack. Separate linked lists get a line each too: in "add two numbers", l1's nodes, l2's and the result list are three lines instead of one long one. Nodes that are linked at any point during the loop count as one list, so a new node is on its list's line from the moment it's created, before it's linked in; lists that get merged share a line. Rows get taller but narrower, so wide structures don't push each other off screen, and in Animated mode each one stays put while it changes. Changes are shown by the yellow highlights; the red arrows between rows are left out in this layout, since they'd have to cross the other lines. The choice is remembered.

Stacked or animated

The Stacked | Animated switch in the Loop history header picks between two views of the same loop. Your choice is remembered.

• Stacked is the history described above: one row per iteration, so you can compare any iteration with any other.
• Animated (the default) shows a single row: the loop's state at the current step. As you step or play, cells change in place and values slide between cells, so a sort visibly shuffles its values into order and a linked list's arrows turn around one by one. Cells that changed on that step are yellow. The row keeps the same layout (columns, cell widths, tree shape) as the stacked view, so nothing jumps around between steps.

Stacked is better for seeing the whole story at once, and Animated for following what a single step does.

Grids

A list of lists (a matrix, a game board, a dynamic programming table) is drawn as a grid in every row, with the same i/j markers as nested mode: i beside its row, j under its column, and an outline on the cell where they meet. Cells that changed in an iteration are yellow, so a dynamic programming table visibly fills in, one cell per iteration:

A grid doesn't show markers for one past its last column, since a name like cols would otherwise always sit there.

Linked lists and trees

Linked nodes don't have indices, so the loop history gives them some. If the loop's variables lead to objects that link to objects of the same class (a next, or left and right), every node gets a fixed column, the same in every row, and each row shows where the links point at that moment:

• Each node is its value (the first plain field, like val or key) followed by a slot per link. A slash in a slot means null/None.
• A link to the next column is a short straight arrow. Other links arc over the row. A second link field, like right in a tree, arcs underneath.
• A link that changed in that iteration is red and its slot is highlighted. A changed value is yellow, like a changed list cell.
• Variables pointing at nodes (head, prev, curr) are markers under the node, like i and j under a list. Inside a method, nodes reached through an object are found too, labeled self.head or this.head.
• Columns follow the links from the start of the loop, so the starting list reads left to right.

Binary trees are drawn top-down. If the class has exactly two links and no node ever has two incoming links, it's a tree. Each node keeps its in-order column (so a binary search tree reads sorted from left to right), and sits at a height set by its depth. Links go from the bottom of each slot down to the child:

A doubly linked list also has two links (prev and next), but its nodes have two incoming links each, so it's drawn as a list.

Nodes the code can no longer reach (say, the old head after it's dropped) leave the row. Plain JavaScript objects like { val: 1, next: null } count as nodes too.

Collapse iterations with no changes folds runs of iterations that didn't modify any container or linked node into a single "#4 to #6: nothing changed" line. This only applies to loops that modify data somewhere. In a loop that only reads (like binary search), the moving indices are the interesting part, so every row is kept:

Graphs

When your data is a graph, the memory view draws it as one: nodes and edges in a single box, laid out once for the whole run so nodes never move while you step. What's recognized:

In your code	Recognized
A dict, object or Map of neighbor lists or sets: {"A": ["B", "C"], ...}	Automatically, when most neighbors are also keys (so {"fruit": ["apple"]} isn't mistaken for one)
Weighted: {"A": {"B": 4}}, or {"A": [("B", 4)]}	Automatically. Weights label the edges
Objects that hold lists, sets or dicts of each other: city.roads, node.children	Automatically. This covers graphs of objects, trees with any number of children, and tries (a dict's keys label its edges)
Neighbors by number: adj = [[1, 2], [0], [0]]	With a hint, viz: graph adj, because a grid looks the same
An adjacency matrix: m = [[0, 1], [1, 0]]	With a hint, viz: graph m. A square list of lists is read as a matrix
An edge list: edges = [(0, 1), (1, 2, 5)]	With a hint, viz: graph edges. JavaScript arrays need viz: graph edges edgelist

A graph is undirected when every edge goes both ways, and directed (with arrowheads) otherwise. It's drawn in layers when it can be, meaning a directed graph without cycles or a tree, so a dependency graph or a trie reads from top to bottom. Anything else gets a force-directed layout.

Your algorithm's state, drawn on the graph

The variables your algorithm uses are drawn on the graph, the way you'd mark it up on a whiteboard. Nothing has to be declared. What a variable means is read from its type, and where the type isn't enough, from its name:

A variable that holds...	Is drawn as
A set of nodes (visited, seen), a dict of node → True, or one True/False per node	Filled-in green nodes
A list named like a result (order, result, done, topo...)	Filled in, like a visited set
Any other list, or a deque, of nodes	Dashed orange rings, numbered in the order they'll come out. That's the front of a queue, the top of a stack (named stack or todo), or the smallest of a heap (named heap, pq or frontier, or holding (priority, node) pairs)
A dict of node → number or text (dist, indegree, color), or one number per node	A small label beside each node
A dict of node → node named like a parent (parent, prev, came_from), or one parent per node	Green arrows: the search tree. Links that aren't edges of the graph, like a union-find forest, are dashed
A list of nodes named like a path (path, route, trip)	Purple arrows along the path
A list of (a, b, ...) edges named like mst, tree or chosen	Those edges in purple
One node (node, u, v, cur, start, goal, nb, next...), or any variable pointing at a node object	A ▲ marker with its name, under the node

A legend at the top of the graph names the variables. Whatever changed in the last step gets a yellow halo, like a changed cell, and markers slide from node to node when animated. A name that doesn't fit the conventions can be added with a hint: viz: graph graph: here, there.

In the loop history, every row draws the graph with that iteration's state, so you can watch a BFS frontier spread out row by row. In animated mode, one graph changes as you step. The algorithm's other variables (dist, heap, visited) are still shown as rows of cells next to it. The graph's own dict isn't, since the picture already shows it.

Graphs look the same in Nested mode, since a graph can't be drawn as boxes inside boxes. To see the dict behind a graph instead, add viz: plain graph.

Generators and async functions

A generator or async function can stop partway through and carry on later, so it doesn't fit the usual call stack, where a call is pushed, runs to the end and is popped. PR0L1NE gives each one its own frame that's suspended and resumed instead:

1. Calling next() (or for ... of) on a generator, or calling an async function, pushes its frame like any call.
2. At a yield, the step reads fibonacci() yields 2 and pauses, and the frame shows the value in a yields row. At an await, the step reads f() waits at line N and pauses.
3. The frame then leaves the call stack and is drawn below it, dashed, titled fibonacci(), paused at line 4. Its variables are still there, and still connected by arrows, because they're still alive.
4. When the generator is asked for its next value, or the awaited promise settles, the same frame moves back onto the stack (f() resumes at line N), at the same position and with the same variables, and carries on.

A paused frame stays on the canvas until its generator finishes or is thrown away. A loop inside a generator keeps its iteration count while it's paused, so the loop history keeps working across yields.

JavaScript's event loop runs too. After your script ends, pending awaits continue, and setTimeout and setInterval callbacks run, in the order their timers would fire. Timers run on a virtual clock: a setTimeout(f, 5000) runs immediately rather than after five seconds, but always after timers due sooner, so the program behaves as it would for real without making you wait. The Program finished step comes after the last callback. A promise rejection that nothing handles stops the run with an error, as it would in Node. for await loops work, and so do async generators.

Python follows the same rules for generators, generator expressions and asyncio coroutines (asyncio.run, await, asyncio.gather, asyncio.sleep). A generator object in the heap says where it's paused, like fibonacci() paused at line 4. asyncio gets a virtual clock too: asyncio.sleep(2) costs no real time, but tasks still wake in the order their sleeps end. That works the same in the browser and on your machine (see how).

The examples include "Generator (Fibonacci)" in all three languages, "Async tasks (asyncio)" for Python, and "Async tasks and timers" for JavaScript and TypeScript.
